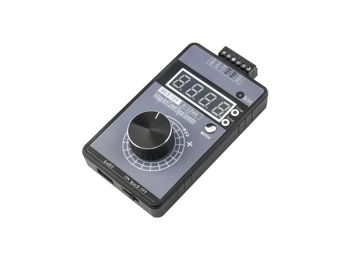

Voltage and current Calibrator 0-5V 0-10V & 4-20mA
Product Code: yK8Xn2h
Brand: HI
Weight: 100.0g
Product Condition: New
Feature:
Product introduction:
Package Included:
- Current loop tester/calibrator
- Voltgage meter calibration
Product introduction:
- Power supply: 3 power supply methods, can be charged/worked with a mobile phone charger or an external 24V
- (1) External terminal power supply DC15-30V power 1W (not charging)/4W (charging);
- (2) External microUSB-5V current 0.2A (not charging)/0.8A (charging);
- (3) [Optional] Built-in 3.7V lithium battery capacity 1000mAh, maximum charging current 0.6A, it will not charge automatically when it is fully charged, generally more than 4 hours, it can take 1-5 hours to see the output load when fully charged;
- Voltage output: ±10V adjustable, accuracy after calibration is 0.05V, drive current <20mA;
- Current output: 0-22mA adjustable, the accuracy after calibration is 0.05mA, the load sampling resistance is less than 500 ohms;
- Working environment: 0-40℃, relative humidity <80%;
- Precautions:
- Turn off the power before wiring;
- Exceeding the range shown in the technical indicators may cause the instrument to work abnormally or even be damaged
Package Included:
- Signal generator x1(With Or Without Battery)
- micro USB charging cable x1
- Screwdriver x1
- Alligator clip x4
- Cold press terminal connector x4
