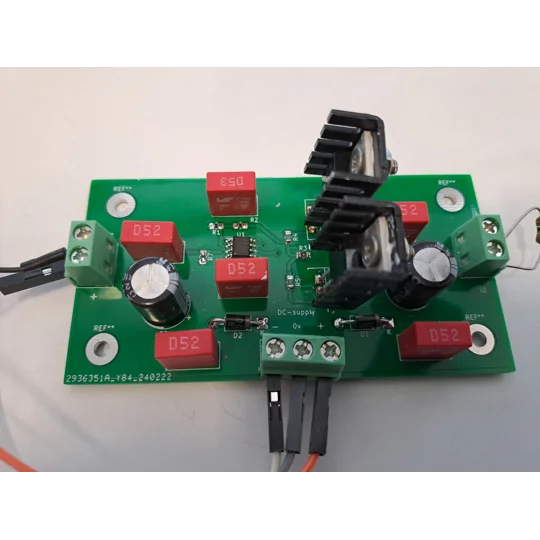

High Voltage and High Frequency Driver Amplifier 250Vpp
High Voltage and High Frequency Driver Amplifier Piezo amplifier etc High voltage up to 200Vpp High frequncy, 100Hz to 500kHz and up to 1 MHz (-6dB) Gain 18,6dB (8,5x),
or express checkout
Description
Specification
Reviews
High Voltage and High Frequency Driver Amplifier
Features:
- High voltage up to 140Vpp (!Take care when working with a high voltage!)
- High frequncy, 100Hz to 500kHz and up to 1 MHz (-6dB)
- Gain 25dB (19x), other gains on request.
Application:
- Piezo driver
- High voltage and high power driver
- High power at high frequency up to 1 MHz
- Mems actuation
- EO-modulator
- Piezo amplifier/driver for precision positioners
- Ultrasoinc
- Stick-slip motors
- Ferroelectric
- Beam stearing or beam blanking
- High Voltage amplifier in many other applications
Specification:
- DC supply voltage +- 20V to +- 70V (not included) (!Take care when working with a high voltage!)
- Gain 20dB ~ 10x (other gains on request)
- Bandwith 1kHz to 500kHz +- 3db (1 MHz -6dB)
- Output Voltage 130Vpp max
- Rin = 100kohm
Application:
- Piezo driver
- High voltage and high power driver
- High power at high frequency up to 1 MHz
- Mems actuation
- EO-modulator
- Piezo amplifier/driver for precision positioners
- Ultrasoinc
- Stick-slip motors
- Ferroelectric
- Beam stearing or beam blanking
- High Voltage amplifier in many other applications
Included:
- High Voltage and High Frequency Driver Amplifier module
- NOTE Power supply not incuded.
| Title | High Voltage and High Frequency Driver Amplifier 250Vpp |
|---|---|
| Brand | H-Instruments |
| Category | Scientific Instruments, |
| SKU | Hamp-1 |
| Condition | new |
| Weight | 80.0 g |
| Width | 90.0 mm |
| Height | 30.0 mm |
| Depth | 50.0 mm |
| HS Code | Hamp-1 |
