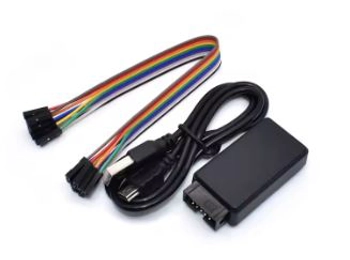

Logic analyzer 8 channels 24 MHz

Easy to use 8 channel Logic analyzer!

(support the latest version saleae logic 1.1.15)

Sampling speed up to: 24 MHz

The sampling speed of each channel of logic reaches 24M/sec. The general application occasion is about 10M, which is enough to cope with various occasions.

8 channels

Logic 8-channel input - can be collected at the same time. It can be analyzed by signal analysis, such as: I2C, Async Serial, SPI, Adrees. LED, Atmel SWI, BiSS C, CAN, HD44780, HDLC, HDMI CEC, I2S / PCM, JTAG, LIN, Manchester, Itel MCS-04 bus, MDIO, Midi, Modbus, 1-Wire, PS/2 Keybord-Mouse, Simple Parallel, SMBus, SWD, USB

Voltage range

Slave Logic: 5V voltage, accepts 5.25 V, 0.8V low with standard CMOS threshold logic. 2.0 V logic high. Input impedance is about 1 MΩ see more specs (10 pF)

Protect

Input resistors and buffer chips to protect logic from overvoltage protection conditions. Better protection of equipment to work safely.

 Software

Works with Saleae software and more

• Sigrok PulseView: https://sigrok.org/wiki/Downloads

• Manual: https://sigrok.org/doc/pulseview/0.4.1/manual.pdf

• Saleae Logic: https://www.saleae.com/downloads/  RECOMMENDED

Product size: 50mm X 28mm x 14mm

Product weight: 50g (including Logic Analyzer, USB cable and 10 DuPont cables)

Shipping packing list:

1, 1  Logic 24M 8CH logic analyzer host.

2, 10 colored Dupont lines (10 different colors) 10.

3. 1 high-quality USB-MINI cable (NOKIA dedicated cable).
