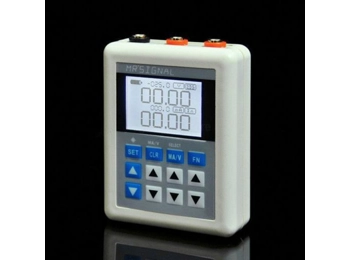

4-20mA / 0-10V current loop Calibrator Simulator PLC

Product Code: MRsignal
Brand: MRSignal
Weight: 300g
Product Condition: New

100% Brand New And High Quality
This is a newly developed, neatly designed, and high precision current loop simulator. Its design is based on years of experience field work calibrating work, it is reliable and considerate.
The device is mainly used for industrial PLC, instrument calibration, electric valve calibration, etc.
The device is easy to operate, with long stand-by time, handy, and featured by high precision.
For recharging, we can use mobile phone or PC to charge it via its mini USB interface.
The device has two channels of output: one channel for current and voltage output, the other channel is sensor transducer analog output.
The analog output has two features:
first, it can simulate transducer of 2-wire-system and 4~10mA current, e.g pressure transducer. The postive/negative of the device can be regarded as the positive/negative of a 2-wire-system transducer).
second, passive output function can be used for 0~24mA input. Both input and output can set range. For example, we set 0~50, which correspond to 4~20mA display.
Technical Data:
1) Active current 0~24mA output (definition 0.01mA). Max load 500 ohm.
2) Passive current 0~24mA output(definition 0.01mA). Max load power supply 25V. Can be used also as current input.
3) Passive input 0~24mA(definition 0.01mA).
4) Voltage output 0~11V(definition 0.01V).
5) Inaccuracy deviation: +/- 0.01
6) Environment temperature: -10~50℃
7) USB power supply and recharge
8) Dimensions: 90 x 70 x 28 mm

Package includes:
   1 x current loop simulator (BLACK COLOR)
   1 pair of banana cables
   1 x mini USB cable for recharging
   1 x outter bag of high quality
We can also wholesale if you need a large quantity of item please contact us

Bulk Buying Options
  • single - $99.00 -
  • 2 up to 10 - $95.90 - per item

$99.00 inc. tax
