TON-1 Waterproof Online Temperature Datalogger

Key Features:

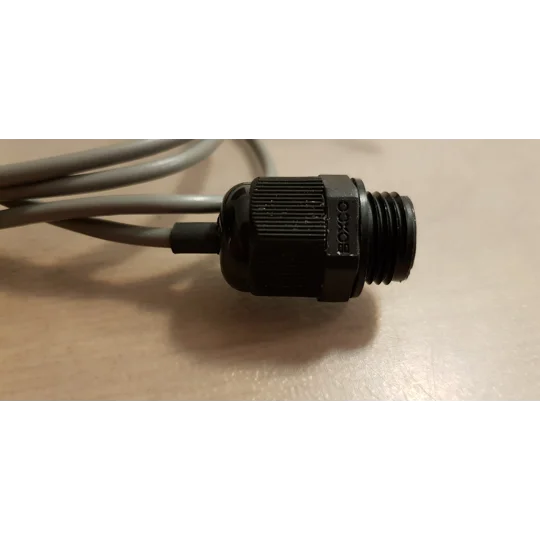

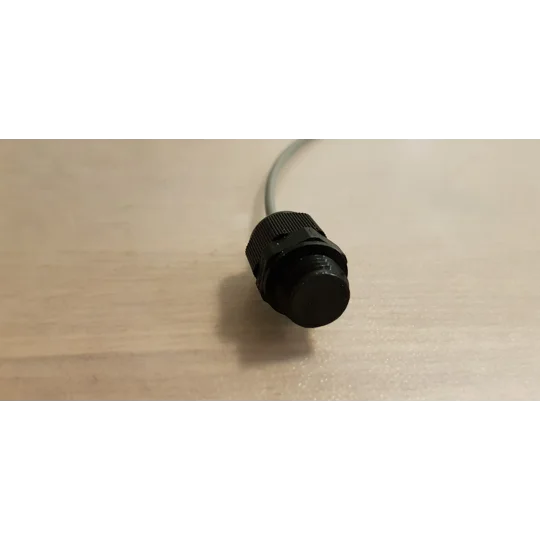

• Compact design housed in a PG9 nipple with PG9 thread – simple and secure installation

• Fully waterproof – tested to depths of 30 meters

• High-accuracy temperature monitoring

• Real-time data transmission

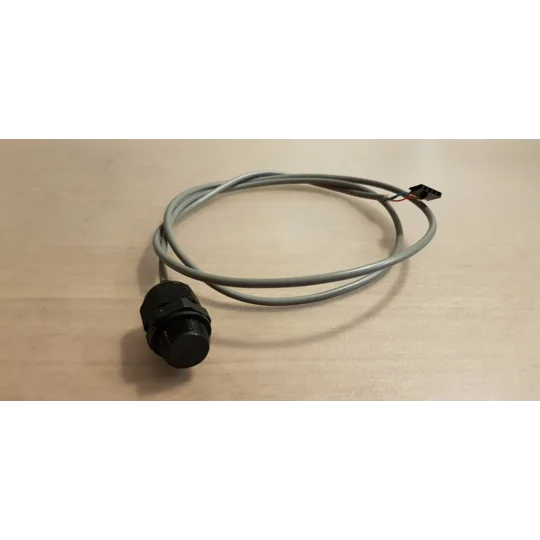

• Requires only 3 wires – includes 1-meter cable (custom lengths available upon request)

• USART interface (TTL-level)

• Easily integrates with embedded systems

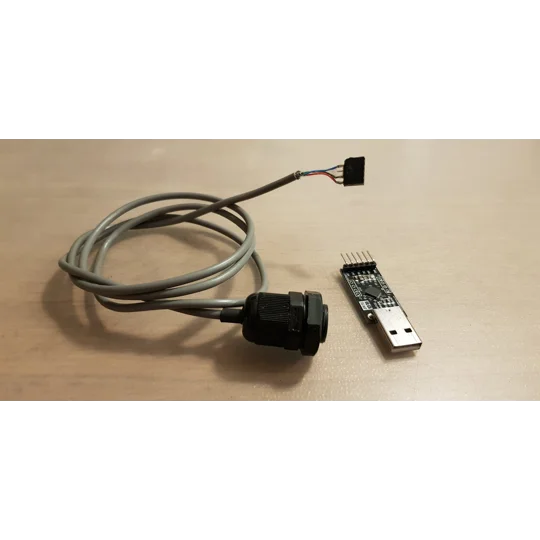

• Optional USB-to-TTL adapter (not included) for PC connection

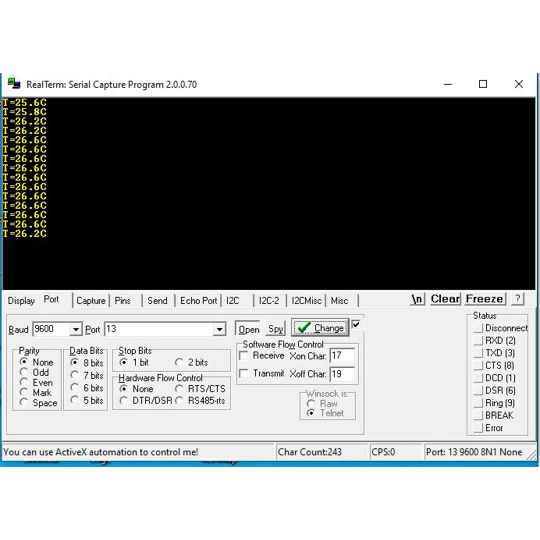

• Compatible with free serial data capture software.(Not included)

• Wide operating temperature range

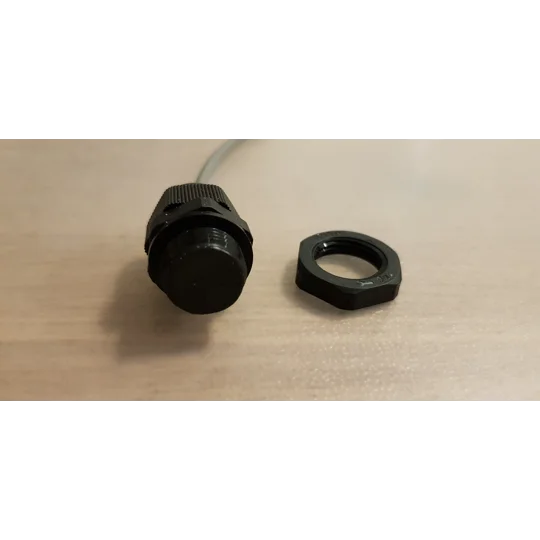

• Mounts easily through any PG9 hole

• Can be used on AUV and BUOY

Specifications:

• Temperature Range: -30°C to +85°C

• Accuracy:

  • 0°C to +70°C: ±1°C (±2°C max)

  • -30°C to +85°C: ±1°C (-2°C/+4°C max)

• Resolution: 0.2°C

• Sampling Rate: 2 seconds (fixed); custom rates available upon request

• Data Format:

  • Baudrate: 9600, 8 data bits, 1 stop bit, no parity

  • Conversion formulas:

    • °C = ((intValue × 0.002) - 0.5) / 0.01

    • °F = (((intValue × 0.002) - 0.5) / 0.01) × 9/5 + 32

• Power Supply: 2.5V to 5.5V, reverse polarity protected

• Power Consumption: <2 mA

• Dimensions: 30 mm (length) x 19 mm (diameter, PG9) + cable

Package Includes:

• 1× TON-1 Online Temperature Datalogger
