Online temperature Current Loop Data Logger 4-20mA -15°C to +125°C

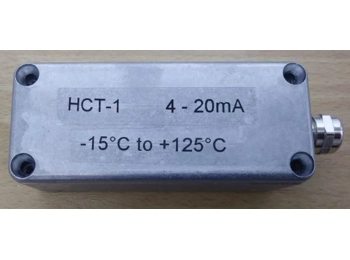

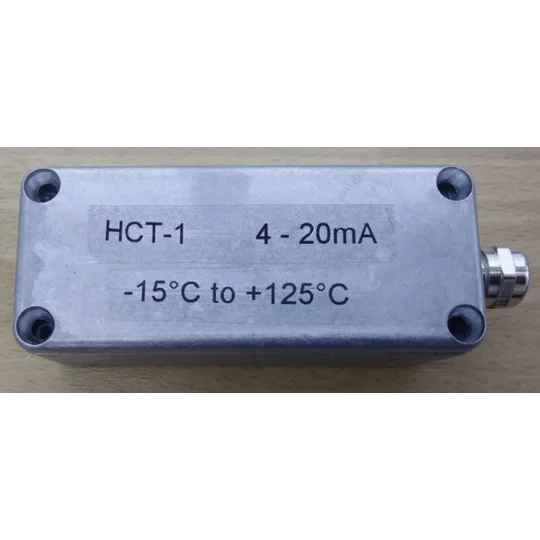

HCT-1 is a high temperature online current loop data logger

Features:

• -15°C to +125°C temperature range
• 4 to 20mA current loop output for robust  and long distance
• High accuracy typical +- 1°C from -10 °to +125°C
• Long distance data logging over 100m is possible
• Robust metal housing
• High noise inmunity

Specifications:

• Voltage 40V max
• Temperature response typical 1 min. in air
• Accuracy :
  • 0°C to 70°C, typ. +-1°C, max +-2°C
  • -15°C to 125°C, typ. +-1°C, max -2°C / +4°C
• Resolution: Dependens on the 4-20mA receiver used.

Package include:
- 1 pcs HCT-1
