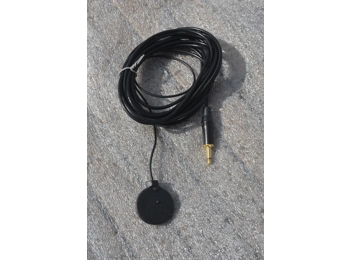

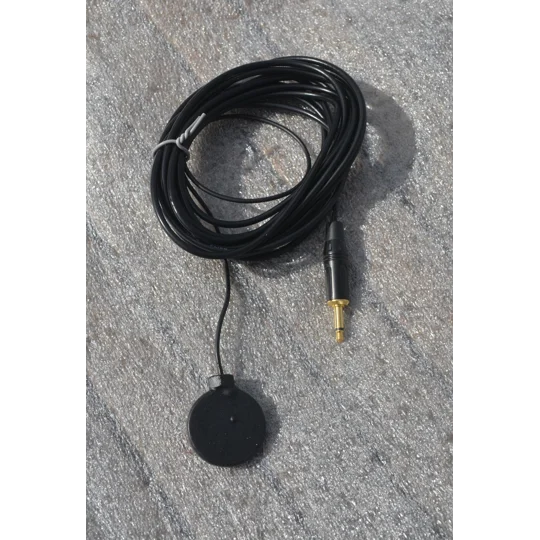

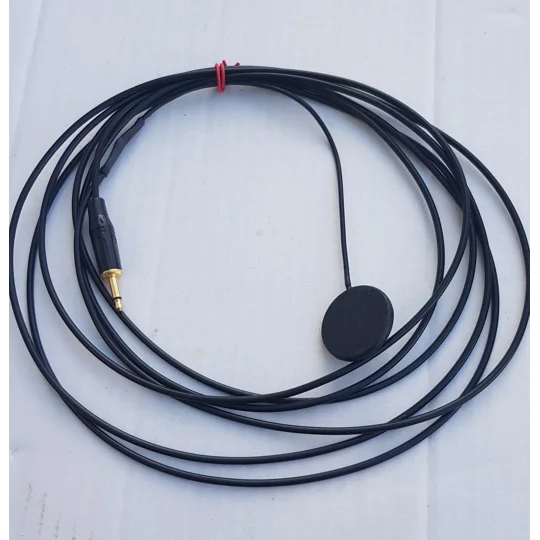

Hydrophone for Underwater listening, Pool leakage detection etc.
HY-03 hydrophone Applications: - Underwater sound listening, mammal Dolphin etc. - Detect marine mammals for conservation & research - Detection pool leakage - Education Specification: Frequency range (-3dB) 20Hz to 20kHz Transducer Sensitivity dB, re 1V/µPa -190 Maximum Operating Depth (tested) 4m Output impedance 10 Mohm (piezo) Nominal capacitance: 20nF (plus cable @ 118pF/m) Dimensions: Diameter 31mm, height 8,5mm For best results use amplifier with high input impedance (1 to 10 Mohm) , like HY-11 Operating Temperature Range : -1 C to +50 C Cable lenght : 3m. Other lenghts on request @ 3$ per meter Connector: 3.5mm phono mono Weight with cable 60g
Buy more, pay less
from eachHY-03 hydrophone
Applications:
- Underwater sound listening, mammal Dolphin etc.
- Detect marine mammals for conservation & research
- Detection pool leakage
- Education
Specification:
- Frequency range (-3dB) 20Hz to 20kHz
- Transducer Sensitivity[dB, re 1V/µPa] -190
- Maximum Operating Depth (tested) 4m
- Output impedance >10 Mohm (piezo)
- Nominal capacitance: 20nF (plus cable @ 118pF/m)
- Dimensions: Diameter 31mm, height 8,5mm
- Each hydrophone is handcrafted and tested before shipping to ensure maximum reliability and sound reproduction
- For best results use amplifier with high input impedance (1 to 10 Mohm), like HY-11
- Operating Temperature Range : -1°C to +50°C
- Cable lenght : 3m. Other lenghts on request @ 3$ per meter
- Connector: 3.5mm phono mono
- Weight with cable 60g
| Title | Hydrophone for Underwater listening, Pool leakage detection etc. |
|---|---|
| Brand | H-Instruments |
| Category | Scientific Instruments, |
| SKU | HY-03 |
| Condition | new |
| Weight | 80.0 g |
| HS Code | HY-03 |
| Country of Origin | Iceland |
