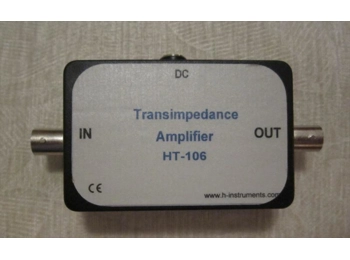

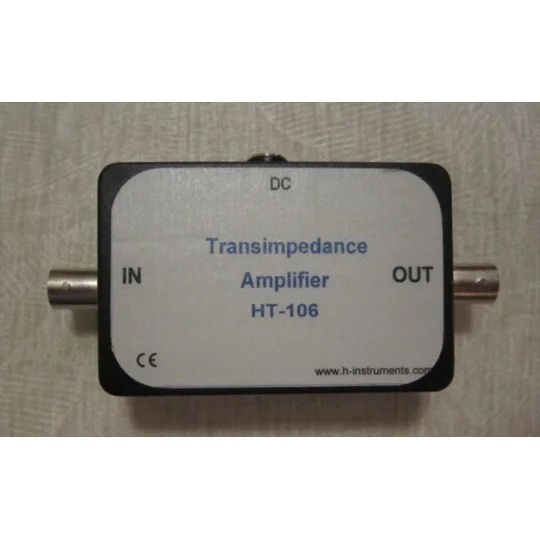

Transimpedance Amplifier - Photo diode Current Amplifier
Introducing the HT-106 Transimpedance Amplifier, your go-to solution for precise photo diode current amplification! Perfect for light sensor applications and low current measurements, this amplifier converts tiny currents into easily readable voltage signals. With a maximum input of 2uA and an impressive output of 2V at 2uA, the HT-106 boasts a gain of up to 1,000,000 V/A, ensuring you capture even the faintest signals. Designed for stability with input capacitance up to 100pF, it features a low input bias current of 1pA and minimal noise, making it ideal for sensitive applications. The compact design (85 x 54 x 300mm) and lightweight (160g) make it easy to integrate into your setup. Plus, it s CE compliant and comes with a 1-year warranty.
Buy more, pay less
from eachHT Transimpedance amplifier
Applications:
- Light sensor application using light sensitive diodes
- Low current measurements.
- Other applications where low current need to be measured and/or converted to voltage signal.
Specifications HT-104 to 106
- Input: +-2uA max
- Output: 2V max @ 2uA. BNC connector,
- Gain: 1.000.000 V/A , 100.000 V/A 10.000 V/A +-0,5% or Dual gain
- Input bias current: +- 1pA typ. @25°C
- Input Noise Current Density: 0.6 fA/√Hz
- Input Noise voltage Density: 28 nV/√Hz
- Total input noise density: 130 nV/√Hz
- BW: HT-106: 30kHz; HT-105: 250kHz, HT-104: 250kHz (small signal)
- Stable for input capacitance up to 100pF
- Power source: DC voltage 8-12V. DC jack socket connector 5.5x2.5mm. + in center of connector
- DC current: 1mA
- Size approx. 85 x 54 x 300mm
- Product weight: 160g
- HT series is CE compliance
- 1 years warranty
Package include:
- 1x HT Transimpedance amplifier V/A
- 1x 9V battery clip with DC connector
| Title | Transimpedance Amplifier - Photo diode Current Amplifier |
|---|---|
| Brand | H-Instruments |
| Category | Scientific Instruments, |
| SKU | HT |
| Condition | new |
| Weight | 100.0 g |
| Country of Origin | Iceland |
